Diagnostic Trouble Codes or shortly DTCs are alphanumeric identifiers used by the ECM to pinpoint specific problems affecting different systems within your vehicle. These codes are triggered when the ECM detects deviations from expected parameters, often accompanied by the illumination of the Check Engine Light (CEL) on your dashboard.

DTCs cover a wide array of issues, from engine misfires and sensor failures to issues with emissions control and idle control systems.

DTCs are part of the On-Board Diagnostics II (OBD-II) system, which is a universally adopted protocol in vehicles manufactured from 1996 onwards. The OBD-II system continuously monitors various sensors and systems within the vehicle, ensuring they operate within the expected parameters. When a deviation is detected, the ECM stores a DTC, which can be accessed using an OBD-II scanner.

1. Early Detection: DTCs enable early detection of potential issues, preventing minor problems from escalating into major, costly repairs.
2. Efficiency: By pinpointing the exact nature and location of a fault, DTCs reduce the time and effort required for diagnostics and repairs.
3. Cost Savings: Identifying issues accurately can save money on unnecessary parts replacements and labor costs.
4. Compliance: For emissions-related problems, addressing DTCs is crucial for meeting regulatory standards and avoiding fines.

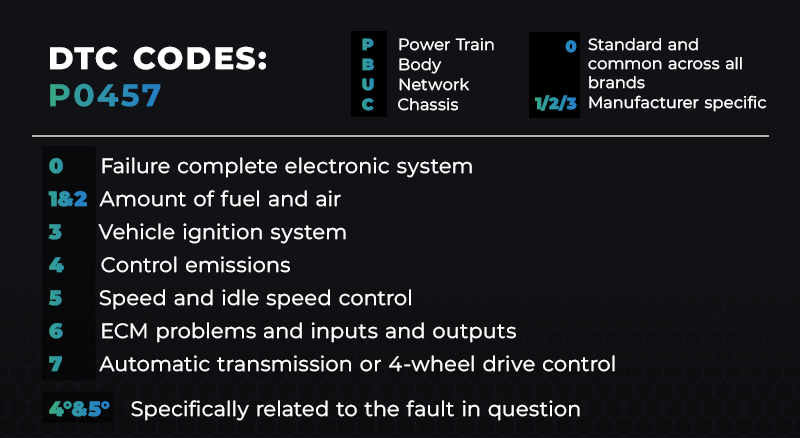

First Character (Letter):

Identifies the system or subsystem affected:

P: Powertrain (e.g., engine, transmission)

B: Body (e.g., airbags, climate control)

U: Network and vehicle integration (e.g., communication systems)

C: Chassis (e.g., ABS, stability control)

Second Character (Digit):

Indicates whether the code is generic (0) or manufacturer-specific (1, 2, 3). Generic codes are universal across different car brands, while manufacturer-specific codes provide more detailed insights tailored to specific makes and models.

Third Character (Digit):

Specifies the subsystem where the fault originated:

0: General electronic system failure

1, 2: Fuel and air metering

3: Ignition system or misfire

4: Emission control system

5: Vehicle speed and idle control

6: ECM or input/output circuit issues

7: Transmission or 4WD system

Fourth and Fifth Characters (Digits):

Offer specific details about the nature of the problem, such as the exact component or circuit involved, such as sensor short circuits or issues in the evaporative emission control system.

Accessing and interpreting DTCs traditionally required specialized tools and expertise, often limited to dealership technicians. However, Carista OBD2 scannerempowers car owners and fleet managers alike by offering a user-friendly, cost-effective solution for diagnostics.

Locate OBD II Port: Find the OBD II port beneath your vehicle's dashboard and plug in the Carista OBD2 scanner.

Connect to Smartphone: Download and launch the Carista mobile app (compatible with iOS and Android). Establish a wireless connection with the scanner.

Initiate Diagnostic Scan: Use the Carista app to conduct a diagnostic scan. The scanner communicates with the ECM to retrieve stored DTCs, including manufacturer-specific codes.

Interpret Results: Review detailed descriptions of DTCs displayed on your smartphone.

Reset DTCs (if required): Once issues are resolved, use the app to clear DTCs and reset the Check Engine Light, ensuring the problem has been effectively addressed.ext here.
